Human, agent, and live KLayout in one loop

One catalogue, two faces

klink's control surface has two faces: the Python client KLinkClient and the same tools exposed over MCP. Both come from the live plugin's method registry — no hand-maintained list that can drift. Every tool's function, parameters and examples are in the MCP Tool Reference; this page ties them into an interactive loop — each section below is "what it is → what a human clicks → what an agent calls, and its real return", with real screenshots, read start to finish on this one page.

from klink import KLinkClient
with KLinkClient() as c:
    print([m["name"] for m in c.methods()["methods"]])

SEND selection memory — what "this area" means

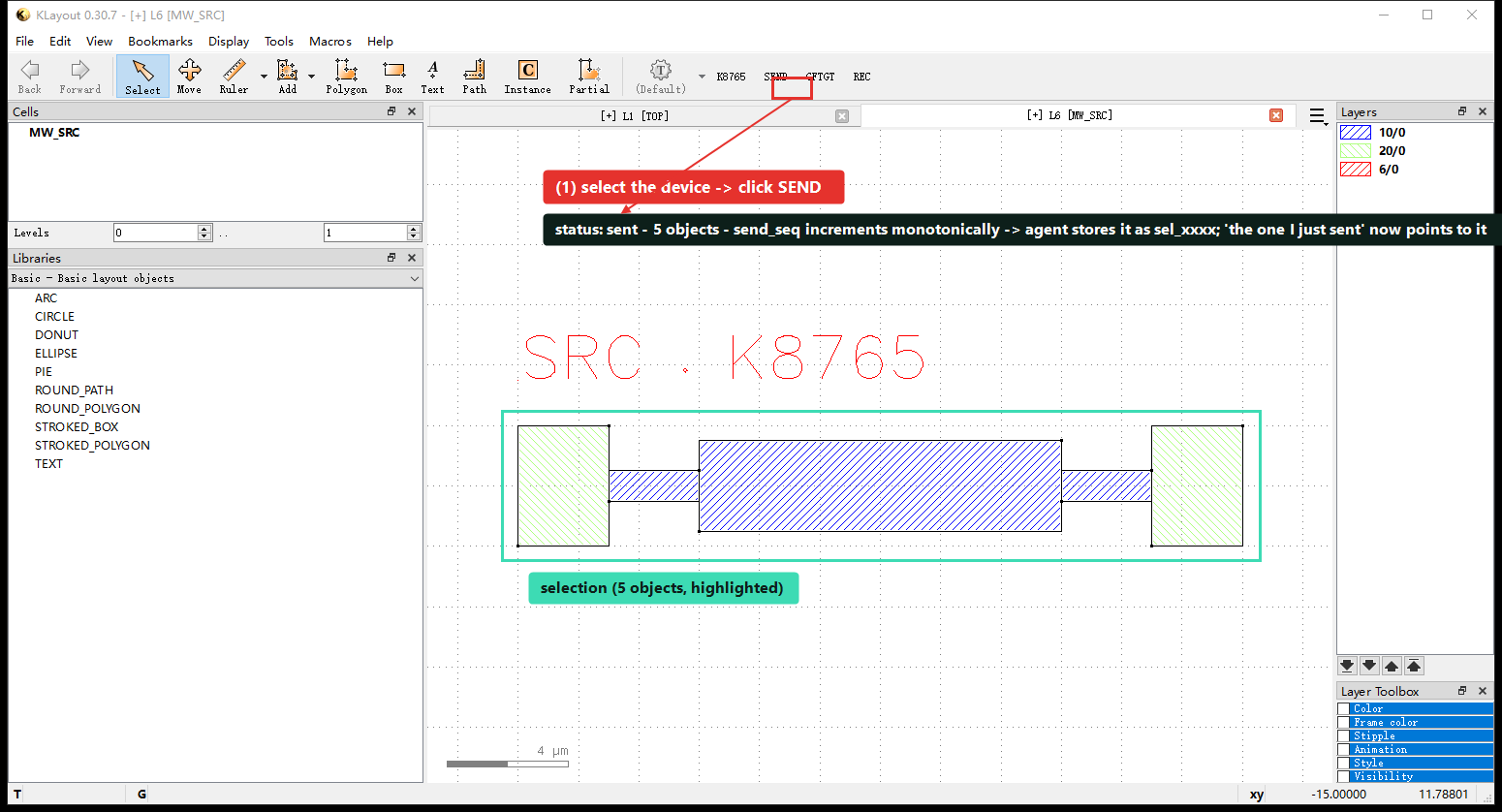

The biggest friction in human + agent collaboration is "which area do you mean?". klink solves it with SEND: you select geometry in KLayout and click the plugin's SEND toolbar button, and the selection is recorded as a stable id such as sel_0006 in session-scoped memory (.klink/sessions/<id>/interaction_context.jsonl). From then on "just sent", "this area", "that one" resolve to exact geometry, not a screenshot.

# the human way: select geometry → click SEND on the toolbar
# the agent-equivalent call:
selection.send_context(source="tutorial_demo")
# → {"status": "sent", "count": 5, "send_seq": 5}

selection.get is the live current selection; interaction.* is the durable memory of what was explicitly SENT. Because minutes of layout work can pass between a SEND and the message referring to it, memory is resolved by order/count, not age. interaction.context returns the current selection and recent SENDs together so the agent can tell which one the user means.

Two deliberate design choices: (1) explicit SEND rather than passively watching every click — only a selection the user actively sends becomes a sel_000N, filtering out exploratory-click and mis-select noise; (2) memory lives outside the plugin (on the bridge) — the plugin holds only "right-now" zero-layer facts (selection.get + the event stream), while session-scoped memory, id assignment and language resolution live in the MCP bridge's interaction.*, persisted per session to disk JSONL.

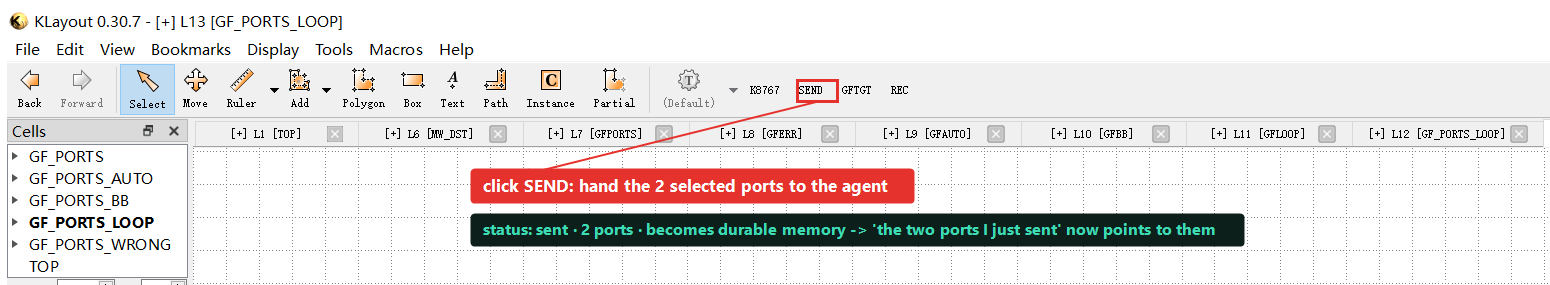

A second example, same button: photonic ports. Select two ports on net link0 (P0 on a custom device, o1 on an MMI) → SEND — same fields, just different numbers:

selection.send_context(source="gf_tutorial")
# → {"status": "sent", "count": 2, "send_seq": 2}

One agent, many KLayouts

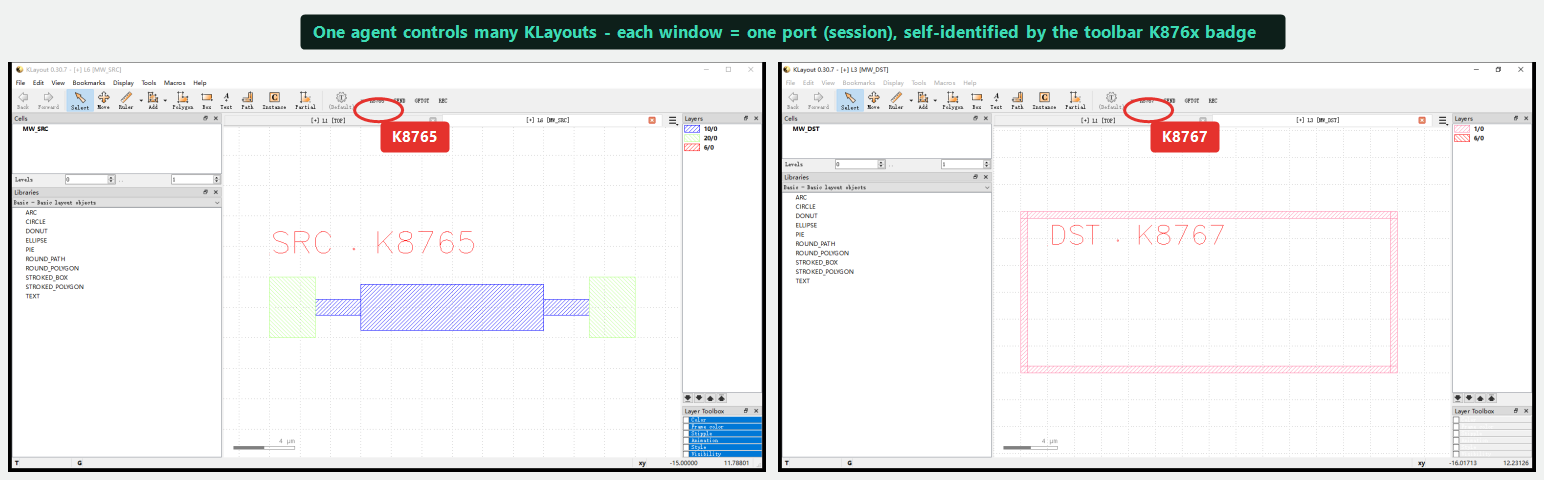

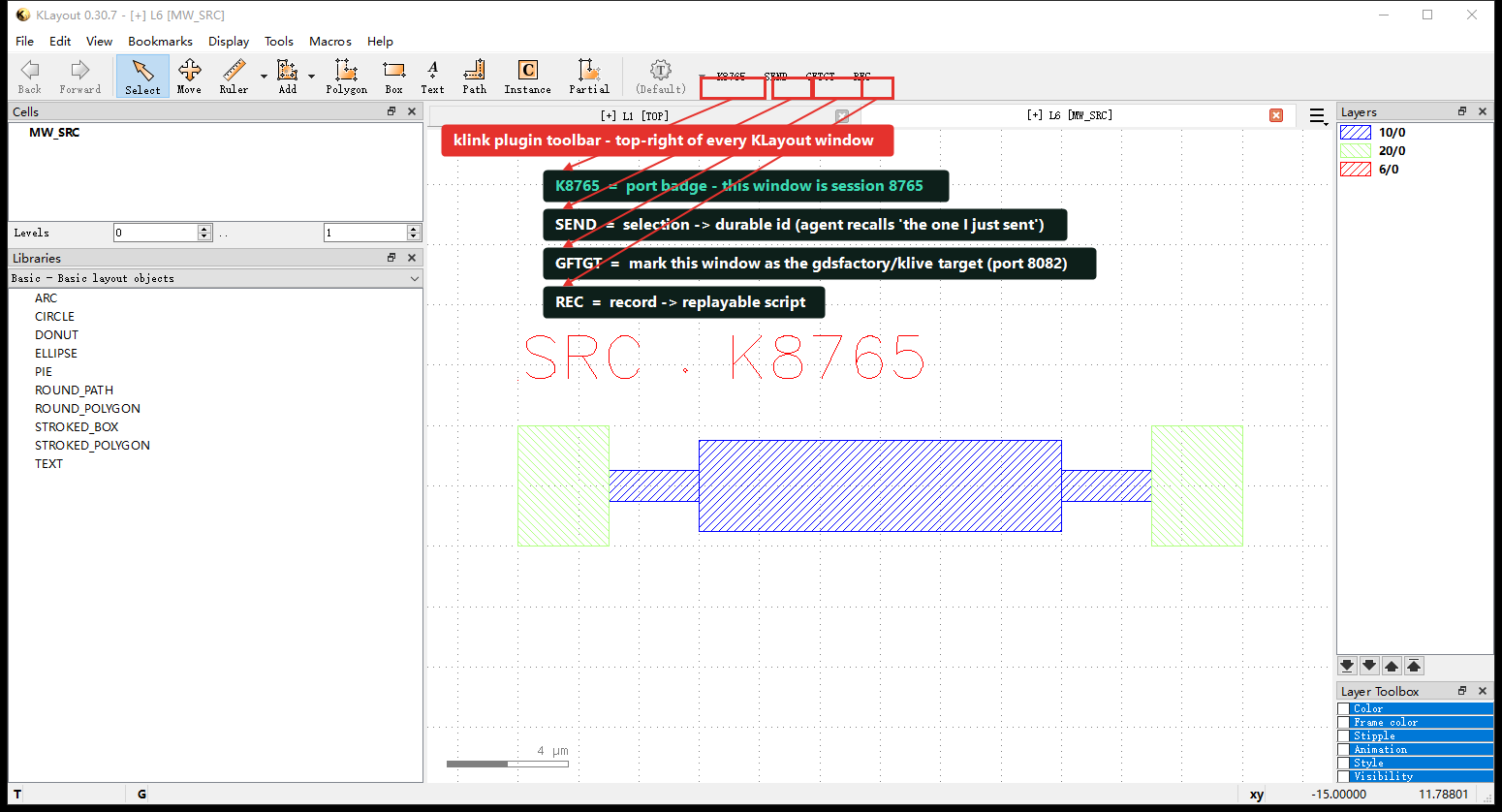

Each KLayout window binds a port (the first free one in 8765–8799) and registers as a session; the toolbar's K876x badge is that window's self-identification. One MCP bridge can drive all of them at once — they are equal peers, no port has a "working" or "LVS" role; the agent addresses windows by an explicit session argument, never by "whichever window has focus".

Because windows are addressed by port rather than by "current focus", an agent can read in one window and write in another without shuffling anything to the foreground:

klink.session_list
klink.session_label session_id="klayout-8766" label="scratch" aliases=["test"]
klink.session_resolve query="scratch"     # → klayout-8766
klink.session_use session_id="klayout-8766"

In practice: when a real working layout and a demo/test window are open at once, label each window first so the agent refers to "scratch" instead of a port number and destructive ops never hit the working tab.

Cross-session transfer — two-phase, confirmation-safe

Moving geometry between windows is two-phase: prepare first, dry-run on the target, then commit to actually write. That catches "wrong target" and "wrong package" before anything lands in the target window.

# the 5 objects were already SENT / selected in source window K8765 (see above)

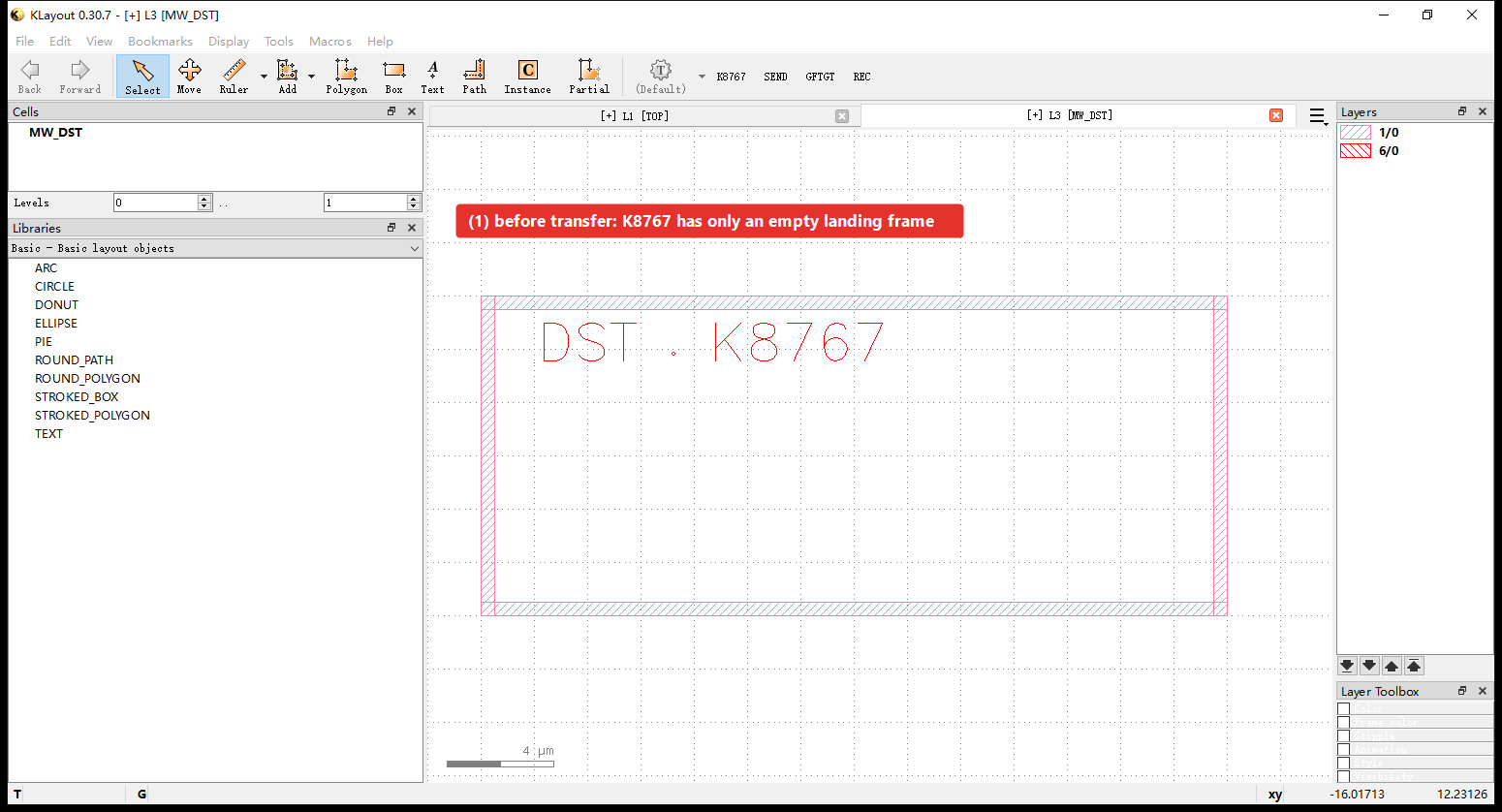

# phase 1: prepare -- read the source selection, package, dry-run on K8767's MW_DST
klink.transfer_prepare source_session="8765" target_session="8767" \
    target_cell="MW_DST" copy_mode="flat_selection"
# → prepare_dry_run: {"cell":"MW_DST","requested":5,"inserted":0,"by_layer":{"10/0":3,"20/0":2}}

# phase 2: commit -- write for real after review
klink.transfer_commit package_id="pkg_0001"

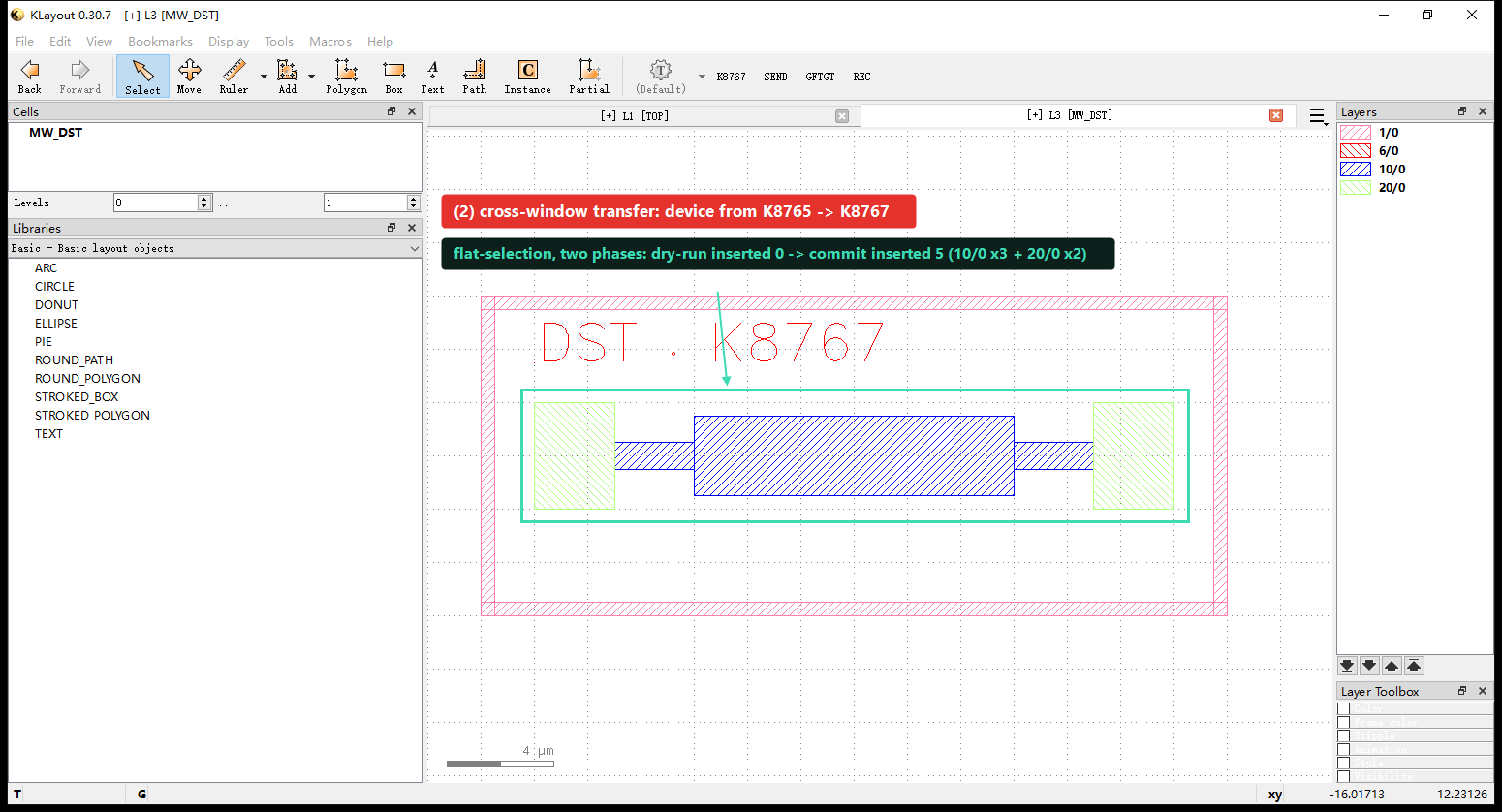

# → commit: {"cell":"MW_DST","requested":5,"inserted":5,"by_layer":{"10/0":3,"20/0":2}}

copy_mode: flat_selection (default) flat-copies visible geometry without hierarchy; shallow_instance moves instance references — and if the target window lacks the child cell, it blocks the commit instead of silently making an empty shell. Nothing lands until commit, so a wrong target is caught at dry-run. Plus layer_map remapping and translate_um offset during transfer.

To see the toolbar anatomy, two windows, SEND, GFTGT, and transfer chained into one full walkthrough, see the step-by-step cross-window tutorial.

Port 8082: klive-compatible display, a full klive replacement

Besides RPC on 8765, the plugin runs a klive-protocol-compatible display server on 127.0.0.1:8082. It is a drop-in replacement for the original klive: any gdsfactory / external script that hard-codes localhost:8082 — especially Component.show() — pushes layout into KLayout with no changes. You do not install klive separately.

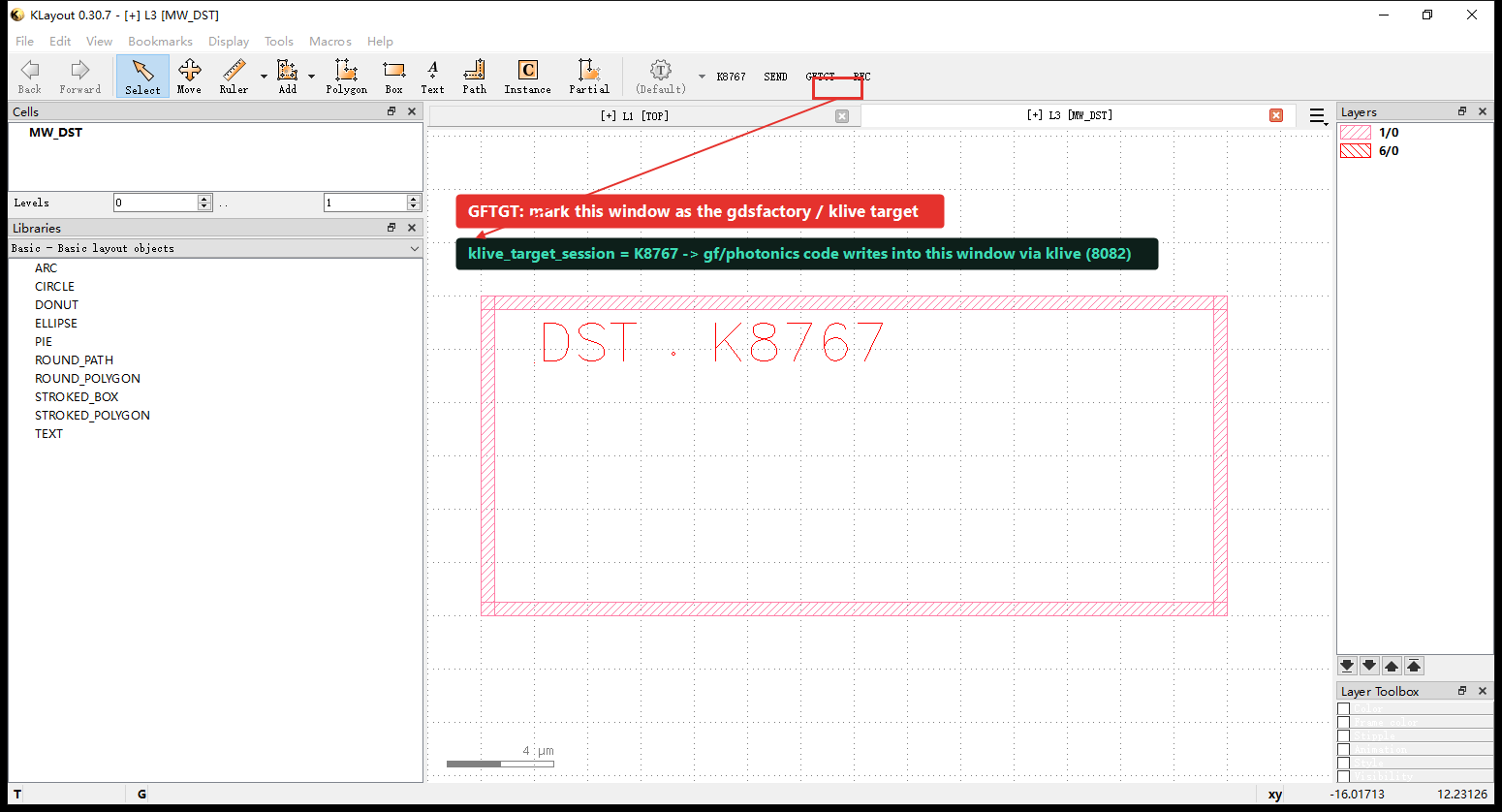

With several windows open there's a practical question: which KLayout window should Component.show() land in? The klive-compatible port is a fixed 8082, and the toolbar's GFTGT button aims that traffic at the current window — what a human clicks: GFTGT on the window that should receive gdsfactory layout; the agent-equivalent call is session.mark_klive_target:

# the human way: click GFTGT on the window that should receive the gf layout
# the agent-equivalent call, run on K8767:
session.mark_klive_target()
# → {"ok": true, "klive_target_session": "klayout-8767"}

import gdsfactory as gf
c = gf.components.mzi()
c.show()          # via 127.0.0.1:8082 → klink's klive-compat server → shown in the GFTGT-marked window

Record → replayable script

What it is: the recorder turns a whole working session — manual GUI edits and agent RPC edits alike — into a replayable script. It is a replay-script generator, not a literal call log: it records whatever rebuilds the final layout state, so a bulk RPC or an exec.python snippet may expand into per-object actions.

What a human clicks: the toolbar's REC button starts/stops recording — the same thing as the recorder.* calls below, just a different entry point.

What you get back: stopping writes two artifacts —

• <name>.py — a KLinkClient replay script, annotated with # user command: lines naming each menu action.
• <name>_pya.py — a standalone pya companion that runs inside KLayout with no klink installed.

recorder.status
recorder.start
# … typed RPC edits + manual GUI edits …
recorder.stop        # writes .py and _pya.py

So a one-off manual fix becomes a script you can re-run and re-parameterize, and an agent can regenerate from it.

Profiles & tool discovery

What it is: --profile filters the MCP tool list by intent (read/write/verify/escape/all) and by domain (one of 11 tokens), so an agent isn't handed hundreds of tools at once.

How to use it: pick a profile when starting the MCP bridge; mid-task, call klink.find_tools to navigate that list further by domain or keyword.

python -m klink.mcp --profile read,write,verify,escape   # default
python -m klink.mcp --profile read,device_photonics
klink.find_tools domain="routing_backends"
klink.status                                             # interpreter / capabilities / connection status

Full detail on MCP Reference · Profiles.

Escape hatch

What it is: exec.python runs controlled pya inside KLayout for cases no typed RPC covers.

How to use it, and the catch: it's called like any other RPC, but rank it below typed RPCs — those validate input, return structured errors with a next_action, and appear in the recorder as intent rather than opaque code. exec.python still schedules recorder + layout-diff detection, so you can see what changed after the fact, but you don't get the pre-flight validation a typed RPC gives you. See MCP Reference · Escape hatch.
